Mozilla has released security updates to Firefox 3.5 and 3.6 that
include defenses for an old, little-known, but serious security hole:
cross-site data theft using CSS. These defenses have a small but
significant chance of breaking websites that rely on quirks
mode
rendering and use a server in another DNS domain
(e.g. a CDN)
for their style sheets.
In this article I’ll describe the attack, what we’re doing about it, how you can ensure that your site will continue to work, and how you can protect your users who have not upgraded their browsers yet.
The attack
In a traditional cross-site scripting (XSS) attack, the attacker finds a way to inject JavaScript code fragments into a web page that they can’t read. When a legitimate user of the targeted site loads the page, the attacker’s code executes. It might send information back to the attacker’s servers, or it might forge commands to the targeted site. CSS data theft also involves injecting strings into a page that the attacker can’t read, but this time, the strings are fragments of a style sheet.

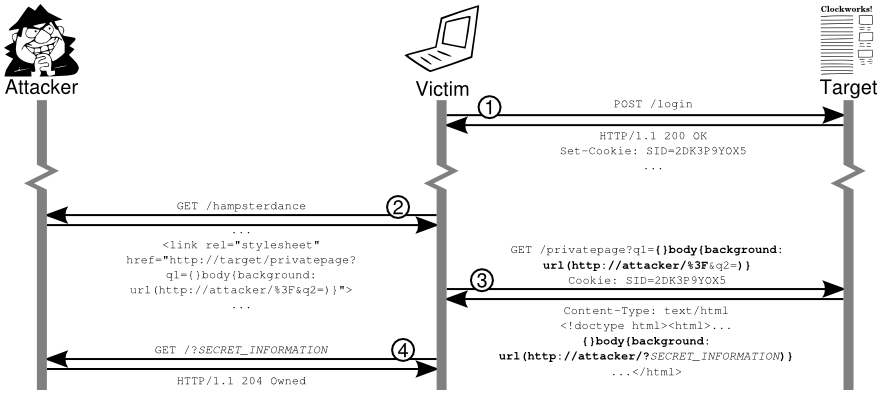

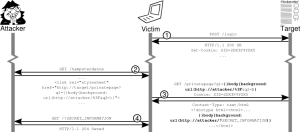

The diagram above shows the course of a CSS data theft attack, from the perspective of a network hub that can see all the traffic. Before the attack begins, a victim user (the laptop in the middle) logs into their favorite website, Clockworks (mockup icon, on the right). Clockworks sends down a session cookie.
Some time later, while the victim is still logged into Clockworks,
they click on an ad for dancing hamsters, and get sent to the attacker’s
website (Badenov, on the left). The attacker’s website sends down an
innocent-looking webpage that contains a <link> tag
whose URL points to the victim’s private-messages page at
Clockworks.
The victim’s browser duly requests the private-messages page from Clockworks; since the victim is still logged in, it sends the session cookie, so the reply will include information meant only for the victim. The query string, chosen by the attacker, causes Clockworks’ server to inject strings into the HTML on either side of an interesting piece of secret information.
Because the attacker’s website is being rendered in quirks
mode, the victim’s browser ignores the Content-Type header
and feeds HTML to the CSS parser. Of course, the very first HTML tag in
the file causes a CSS syntax error, but CSS has predictable, lenient
rules for recovering from syntax errors. The attacker’s injected strings
make the CSS parser ignore most of the target page, and capture the
secret as the value of the CSS background property.
Finally, since the background property applies to the
body tag, the browser needs to download the image it
specifies in order to render the attacker’s website. The image URL has
been wrapped around the secret information that the attacker wants. So
the browser sends that secret to the attacker’s server as a query
string.
This attack has been known for some time. The earliest public
description I have found was by
GreyMagic Corporation in 2002. It has been rediscovered at least
twice since then: by Matan
Gillon in 2005, and by pseudonymous
blogger ofk
in 2008 (article in Japanese). There are many
variations, some of which no longer work, and some of which only work in
IE. The variation I’ve described works everywhere that hasn’t deployed a
defense; security
researchers at CMU were able to use this attack to steal the
contents of private messages from a bulletin board and two different
webmail providers, with victims using unpatched versions of all the
popular browsers.
Since the attack relies on the CSS parser’s error recovery behavior,
sites may be immune because of accidental properties of their page
structure. For instance, most browsers do not allow newlines in
url() literals. If there had been a newline in the middle
of the secret information in the diagram, just because that’s the way
Clockworks generates its HTML, the attack would only work against
victims using IE.
Browser-side defense
This attack works because a webpage in quirks mode can load
anything as a style sheet, even if it’s really a HTML page
coming from someone else’s server. If the attacker’s page were in
standards mode, the browser would pay attention to the HTTP
Content-Type header on the target page, declaring it not to
be CSS, and refuse to load it as a style sheet.
The attacker, of course, controls whether their page is in quirks
mode. But the attacker’s page is on a different server than the target
page, which means the attack can be blocked by an extension of the same-origin
policy. Even if a page is in quirks mode, it’s not allowed to load a
style sheet with a Content-Type header declaring it to be
something other than CSS, unless that sheet comes from the same origin.
Firefox
4 will implement this rule, and IE has also adopted it (see
below).
Unfortunately, there are a few websites out there that are rendered
in quirks mode, and load their style sheets from a different origin, and
put a Content-Type header on those style sheets that says
they’re not CSS. These sites aren’t common—the aforementioned CMU
security researchers found 62 in the Alexa top 100,000, and most of
those have been fixed already—but Firefox 4 will break them.
To give folks more time to fix their sites, while blocking the attack
as soon as possible, we implemented a more lenient rule in Firefox
≥3.5.11 and ≥3.6.7.
If a page is in quirks mode, loads a style sheet cross-origin, and that
sheet has the wrong Content-Type, we’ll start parsing it as
CSS anyway … but we’ll stop and throw the sheet away if we encounter a
syntax error before the first complete rule has been parsed. HTML tags
cause CSS syntax errors, so unless the attacker can inject text at the
very beginning of a page, they won’t be able to make the attack work.
Safari, Google Chrome, and Opera have also adopted this rule.
It’s possible that this rule could break sites too. For instance, if
a style sheet begins with an @-rule that Firefox 3.5 does
not understand, that will count as a syntax error, and the sheet will be
discarded.
UPDATE: August 28: The HTML5
spec for <link rel="stylesheet"> now requires the
strict rule (see HTML5 defect
report 9834).
UPDATE: October 26: As of Microsoft’s October 2010 cumulative security update, all maintained versions of Internet Explorer (6, 7, 8, and 9) now implement the strict rule.
Fixing your website
You only have to worry about your site being broken by the defense if you load your style sheets from a different server than the HTML and you use quirks mode. If your site works with a Firefox 4 beta, you’re fine. Current versions of Firefox 3.5 and 3.6 will warn you in the error console when they see a site that will break in Firefox 4, so you can also test that way. (Unfortunately, due to limitations of our translation process, part of this warning will always be in English.)
If your site breaks, all you have to do to fix it is make sure that
your style sheets are being served with
Content-Type: text/css in the HTTP headers. Please also
consider switching to standards-mode rendering. If you cannot fix your
website, we
want to hear from you
Protecting your users
If a browser tries to load a style sheet, and the HTTP response it
gets has no Content-Type header, it will just assume that
it has been sent some CSS, even if it’s a cross-origin load. Therefore,
your users are not fully safe from the attack, even if they all have
browsers with the defense, unless your servers put Content-Type headers
on all content requiring authentication. Check your web
services as well as human-readable content.
You should also make sure that those headers are correct. Most
importantly, ensure that if your server can’t figure out what
Content-Type to put on a response, it falls back to
application/octet-stream or text/plain.
Certain other possibilities (for instance, */* and
application/x-unknown-content-type) may be treated the same
as if you hadn’t sent a Content-Type at all.
It is also vital to provide an accurate charset= option
in your Content-Type headers for all textual data. If you
don’t, an attacker can bypass your XSS
filters by encoding injected strings in UTF-7. Declaring the charset
in a meta tag or <?xml... ?> instruction
is not enough to defend against a CSS data theft attack
encoded in UTF-7; the CSS parser doesn’t pay any attention to them.
To protect users that are still using browsers that have no defense
against CSS data theft, you should block this attack in your filters for
user-submitted content. All you have to do is add {,
}, and @ to the set of characters that get
replaced with equivalent HTML entities ({,
}, and @, respectively). If
you can’t be sure that you are always producing
Content-Type headers with the correct charset=
option, you should also entity-encode + to
+.
More information
Chris Evans rediscovered this exploit in late 2009 and has been instrumental in getting it fixed. He has two other blog posts that go into more detail. Collin Jackson and his team at CMU have also been very helpful in understanding the full scope of the attack and ensuring all major browsers fixed it. Their paper will appear at the ACM Computer and Communications Security conference in October.
For technical details of the fixes, see Mozilla bug 524223, Chromium bug 9877, and Webkit bug 29820.
